Sveorder 2.0 - BII Core Order


Start Structure Guideline

Go back Previous

Location. Address

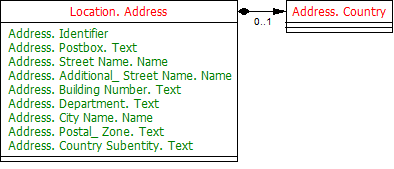

Diagram

Status: O
Occurrence: 0 .. 1
Based on Address. Details
UBL Name  Address
Svensk term Adress
CCTS Type  ASBIE
Definition  Association to the address of the location.

BCC / BBIE

DictionaryEntryName
Based on Occurrence

Address. Identifier
Identifier. Type 0 .. 1
Address. Postbox. Text
Text. Type 0 .. 1
Address. Street Name. Name
Name. Type 0 .. 1
Address. Additional_ Street Name. Name
Name. Type 0 .. 1
Address. Building Number. Text
Text. Type 0 .. 1
Address. Department. Text
Text. Type 0 .. 1
Address. City Name. Name
Name. Type 0 .. 1
Address. Postal_ Zone. Text
Text. Type 0 .. 1
Address. Country Subentity. Text
Text. Type 0 .. 1

BCC / BBIE Details

Address. Identifier goto Codes
Svensk term Identifierare
Based on  Identifier. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  An identifier for a specific address within a scheme of registered addresses. e.g., the
GS1 Global Location Number, GLN.
BusinessTerm(s)  DetailsKey
Address. Postbox. Text goto Codes
Svensk term Postbox
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  A post office box number.
BusinessTerm(s)  PostBox, PO Box
CENBII Usage See description
Address. Street Name. Name goto Codes
Svensk term Gatunamn
Based on  Name. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The name of a street.
BusinessTerm(s)  Thoroughfare
Address. Additional_ Street Name. Name goto Codes
Svensk term Extra gatunamn
Based on  Name. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  An additional name of a street used to further specify the street name.
BusinessTerm(s)  Thoroughfare
Address. Building Number. Text goto Codes
Svensk term Byggnadsnummer
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The number of a building.
BusinessTerm(s)  PremiseNumber
Address. Department. Text goto Codes
Svensk term Avdelning
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  An addressable department of an organization.
BusinessTerm(s)  Department
Address. City Name. Name goto Codes
Svensk term Ort
Based on  Name. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The name of a city, town, or village.
BusinessTerm(s)  LocalityName
Address. Postal_ Zone. Text goto Codes
Svensk term Postnummer
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The identifier for an addressable group of properties according to the relevant national postal service, such as a ZIP code or Post Code.
BusinessTerm(s)  PostalCodeNumber
Address. Country Subentity. Text goto Codes
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  A territorial division of a country, such as a county or state.
BusinessTerm(s)  AdministrativeArea, State, Country, Shire, Canton
CENBII Usage For specifying a region, county, state, province etc. within a country by using text.


Top Previous Next/Continue


Version  Sveorder 2.0 - BII Core Order; ; SE    Issue date  2007-10-11    Print date  2010-06-08
