Sveorder 2.0 - BII Core Order


Start Structure Guideline

Go back Previous

Party. Postal_ Address. Address

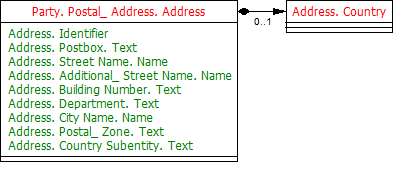

Diagram

Status: O
Occurrence: 0 .. 1
Based on Address. Details
UBL Name  PostalAddress
Svensk term Postadress
CCTS Type  ASBIE
Definition  The party's postal address.
CENBII Usage Use domestically defined guidleine if applicable. Postal Address should be specified at document level.

BCC / BBIE

DictionaryEntryName
Based on Occurrence

Address. Identifier
Identifier. Type 0 .. 1
Address. Postbox. Text
Text. Type 0 .. 1
Address. Street Name. Name
Name. Type 0 .. 1
Address. Additional_ Street Name. Name
Name. Type 0 .. 1
Address. Building Number. Text
Text. Type 0 .. 1
Address. Department. Text
Text. Type 0 .. 1
Address. City Name. Name
Name. Type 0 .. 1
Address. Postal_ Zone. Text
Text. Type 0 .. 1
Address. Country Subentity. Text
Text. Type 0 .. 1

BCC / BBIE Details

Address. Identifier goto Codes
Svensk term Identifierare
Based on  Identifier. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  An identifier for a specific address within a scheme of registered addresses. e.g., the
GS1 Global Location Number, GLN.
BusinessTerm(s)  DetailsKey
Address. Postbox. Text goto Codes
Svensk term Postbox
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  A post office box number.
BusinessTerm(s)  PostBox, PO Box
CENBII Usage See description
Address. Street Name. Name goto Codes
Svensk term Gatunamn
Based on  Name. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The name of a street.
BusinessTerm(s)  Thoroughfare
Address. Additional_ Street Name. Name goto Codes
Svensk term Extra gatunamn
Based on  Name. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  An additional name of a street used to further specify the street name.
BusinessTerm(s)  Thoroughfare
Address. Building Number. Text goto Codes
Svensk term Byggnadsnummer
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The number of a building.
BusinessTerm(s)  PremiseNumber
Address. Department. Text goto Codes
Svensk term Avdelning
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  An addressable department of an organization.
BusinessTerm(s)  Department
Address. City Name. Name goto Codes
Svensk term Ort
Based on  Name. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The name of a city, town, or village.
BusinessTerm(s)  LocalityName
Address. Postal_ Zone. Text goto Codes
Svensk term Postnummer
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  The identifier for an addressable group of properties according to the relevant national postal service, such as a ZIP code or Post Code.
BusinessTerm(s)  PostalCodeNumber
Address. Country Subentity. Text goto Codes
Based on  Text. Type goto qDT goto uDT
Occurrence  0 .. 1
Definition  A territorial division of a country, such as a county or state.
BusinessTerm(s)  AdministrativeArea, State, Country, Shire, Canton
CENBII Usage For specifying a region, county, state, province etc. within a country by using text.


Top Previous Next/Continue


Version  Sveorder 2.0 - BII Core Order; ; SE    Issue date  2007-10-11    Print date  2010-06-08
